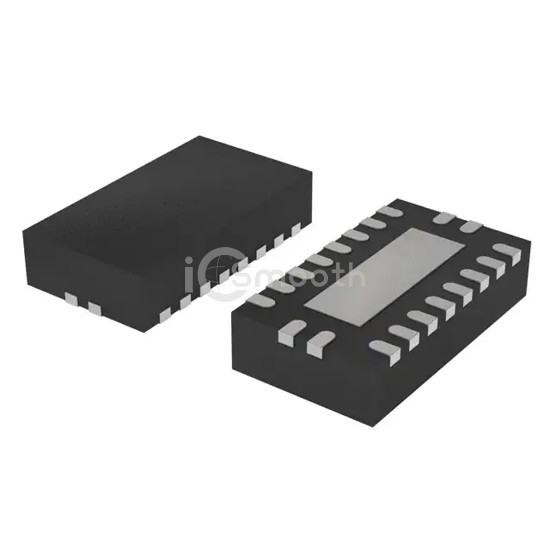

Name: TMUXHS4212RKSR
Brand: Texas Instruments
SKU: TMUXHS4212RKSR
Price: 1.32 USD
Availability: InStock

REF: TMUXHS4212RKSR Texas Instruments

TMUXHS4212RKSR

Texas Instruments

2-CHANNEL 16-GBPS 2:1/1:2 DIFFER

TMUXHS4212RKSR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 2-CHANNEL 16-GBPS 2:1/1:2 DIFFER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 20-VFQFN Exposed Pad, number of circuits 2.

Request a Quote

In Stock: 2,864

Tiered Pricing USD

1+ $1.3200 —

10+ $0.9590 -27%

25+ $0.8692 -34%

100+ $0.7698 -42%

250+ $0.7225 -45%

500+ $0.6939 -47%

1,000+ $0.6704 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPST, SPDT
Multiplexer/Demultiplexer Circuit	1:2, 2:1
Number of Circuits	2
On-State Resistance (Max)	8.4Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	1.71V ~ 1.98V, 3V ~ 3.6V
Voltage - Supply, Dual (V±)	1.71V ~ 1.98V, 3V ~ 3.6V
Switch Time (Ton, Toff) (Max)	100ns, 100ns

-3db Bandwidth	13GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	5µA
Crosstalk	-27dB @ 10GHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-VQFN (4.5x2.5)
