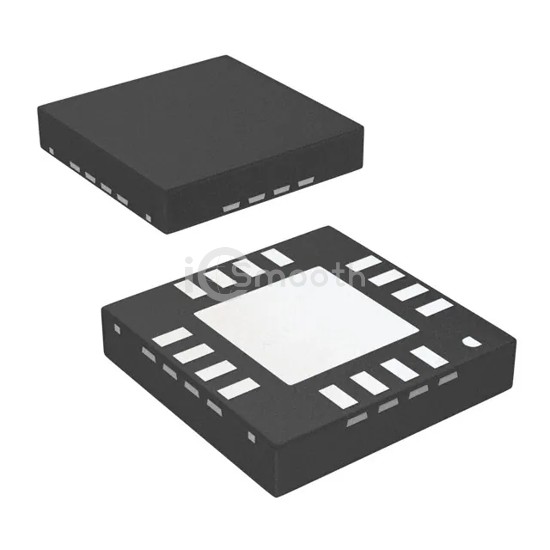

Name: TMUX7462FRRPR
Brand: Texas Instruments
SKU: TMUX7462FRRPR
Price: 8.58 USD
Availability: InStock

REF: TMUX7462FRRPR Texas Instruments

TMUX7462FRRPR

Texas Instruments

60-V FAULT-PROTECTED, LATCH-UP I

TMUX7462FRRPR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 60-V FAULT-PROTECTED, LATCH-UP I. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 7,243

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	10.5Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	8V ~ 44V, ±5V ~ 22V
Voltage - Supply, Dual (V±)	8V ~ 44V, ±5V ~ 22V
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	550MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-100dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
