Name: TMUX7309FRRPR
Brand: Texas Instruments
SKU: TMUX7309FRRPR
Price: 3.07 USD
Availability: InStock

REF: TMUX7309FRRPR Texas Instruments

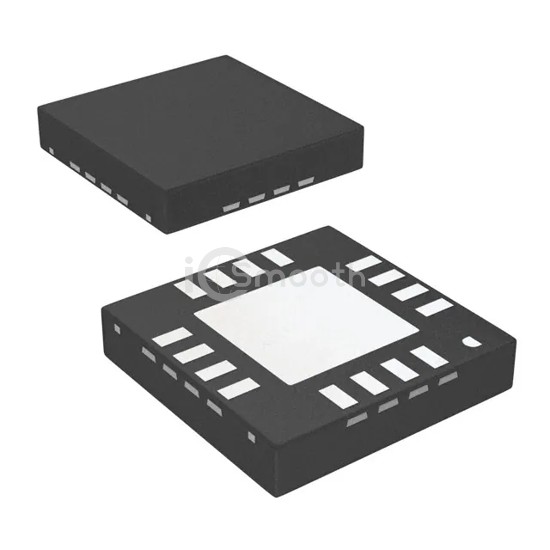

TMUX7309FRRPR

Texas Instruments

60-V FAULT-PROTECTED, 4:1, TWO-C

TMUX7309FRRPR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 60-V FAULT-PROTECTED, 4:1, TWO-C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.

Request a Quote

In Stock: 6,749

Specifications

18 parameters

Product Status	Active
Switch Circuit	4PST
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	250Ohm
Channel-to-Channel Matching (ΔRon)	2.5Ohm
Voltage - Supply, Single (V+)	8V ~ 44V, ±5V ~ 22V
Voltage - Supply, Dual (V±)	8V ~ 44V, ±5V ~ 22V
Switch Time (Ton, Toff) (Max)	390ns, 450ns

-3db Bandwidth	255MHz
Charge Injection	-16pC
Channel Capacitance (CS(off), CD(off))	4pF, 16pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-103dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
