Name: TMUX7213RUMR
Brand: Texas Instruments
SKU: TMUX7213RUMR
Price: 6.06 USD
Availability: InStock

REF: TMUX7213RUMR Texas Instruments

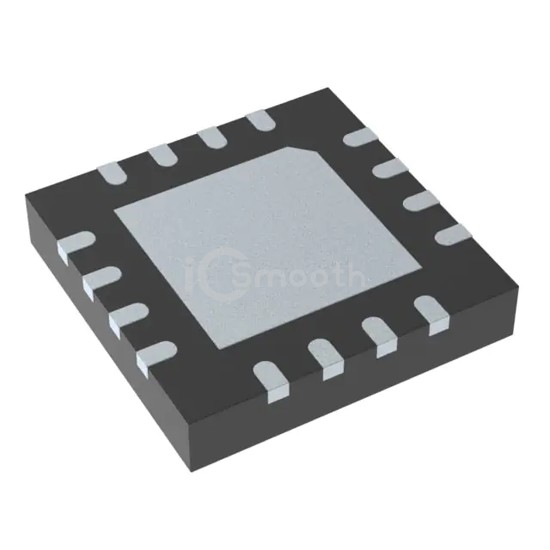

TMUX7213RUMR

IC MULTIPLEXER

TMUX7213RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.

Request a Quote

In Stock: 8,128

Tiered Pricing USD

1+ $6.0600 —

10+ $4.6500 -23%

25+ $4.2972 -29%

100+ $3.9090 -35%

250+ $3.7239 -39%

500+ $3.6124 -40%

1,000+ $3.5206 -42% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO/NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	2.5Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	4.5V ~ 44V, ±4.5V ~ 22V
Voltage - Supply, Dual (V±)	4.5V ~ 44V, ±4.5V ~ 22V
Switch Time (Ton, Toff) (Max)	185ns, 210ns

-3db Bandwidth	48MHz
Charge Injection	92pC
Channel Capacitance (CS(off), CD(off))	28pF, 45pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-93dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
