Name: TMUX7209RUMR
Brand: Texas Instruments
SKU: TMUX7209RUMR
Price: 3.94 USD
Availability: InStock

REF: TMUX7209RUMR Texas Instruments

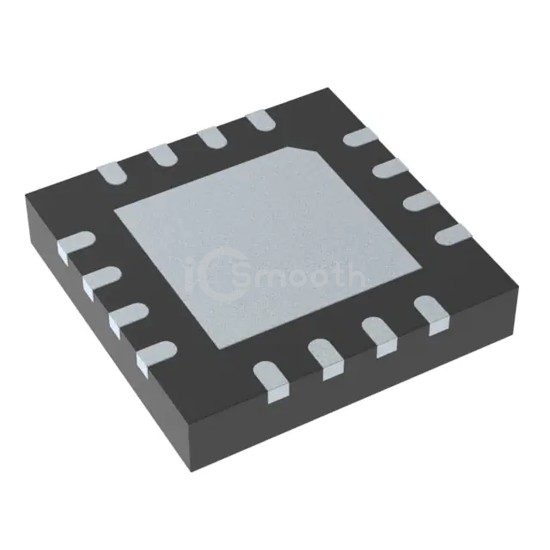

TMUX7209RUMR

IC MULTIPLEXER

TMUX7209RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.

Request a Quote

In Stock: 3,463

Specifications

18 parameters

Product Status	Active
Switch Circuit	4PST
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	5.5Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm
Voltage - Supply, Single (V+)	4.5V ~ 44V, ±4.5V ~ 22V
Voltage - Supply, Dual (V±)	4.5V ~ 44V, ±4.5V ~ 22V
Switch Time (Ton, Toff) (Max)	205ns, 268ns

-3db Bandwidth	51MHz
Charge Injection	-5pC
Channel Capacitance (CS(off), CD(off))	15pF, 67pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
