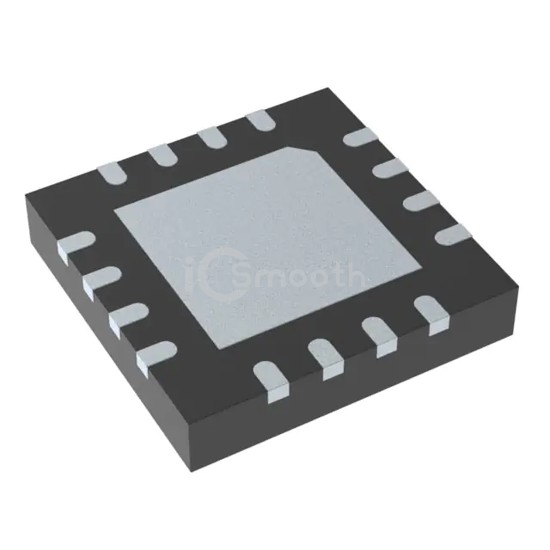

Name: TMUX7208RUMR
Brand: Texas Instruments
SKU: TMUX7208RUMR
Price: 6.94 USD
Availability: InStock

REF: TMUX7208RUMR Texas Instruments

TMUX7208RUMR

IC MULTIPLEXER

TMUX7208RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 1.

Request a Quote

In Stock: 6,242

Tiered Pricing USD

1+ $6.9400 —

10+ $5.3450 -23%

25+ $4.9472 -29%

100+ $4.5098 -35%

250+ $4.3013 -38%

500+ $4.1757 -40%

1,000+ $4.0723 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	8PST
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	5.4Ohm
Channel-to-Channel Matching (ΔRon)	700mOhm
Voltage - Supply, Single (V+)	4.5V ~ 44V, ±4.5V ~ 22V
Voltage - Supply, Dual (V±)	4.5V ~ 44V, ±4.5V ~ 22V
Switch Time (Ton, Toff) (Max)	205ns, 270ns

-3db Bandwidth	30MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	14pF, 130pF
Current - Leakage (IS(off)) (Max)	70nA
Crosstalk	-85dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
