Name: TMUX6212RUMR
Brand: Texas Instruments
SKU: TMUX6212RUMR
Price: 5.80 USD
Availability: InStock

REF: TMUX6212RUMR Texas Instruments

TMUX6212RUMR

IC MULTIPLEXER

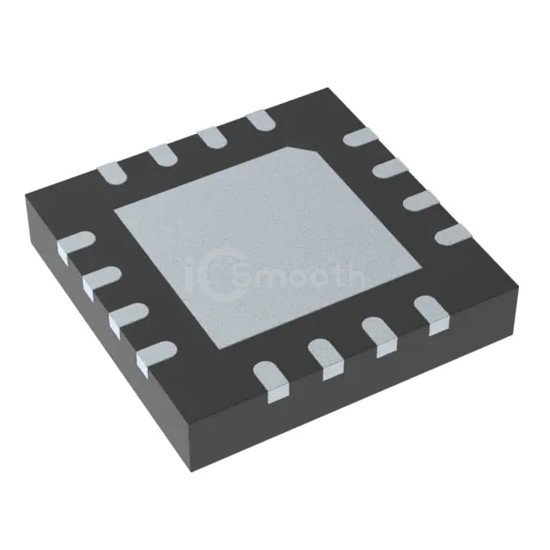

TMUX6212RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.

Request a Quote

In Stock: 4,699

Tiered Pricing USD

1+ $5.8000 —

10+ $4.4430 -23%

25+ $4.1036 -29%

100+ $3.7302 -36%

250+ $3.5522 -39%

500+ $3.4449 -41%

1,000+ $3.3566 -42% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	3.1Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	4.5V ~ 36V, ±4.5V ~ 18V
Voltage - Supply, Dual (V±)	4.5V ~ 36V, ±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)	180ns, 200ns

-3db Bandwidth	50MHz
Charge Injection	78pC
Channel Capacitance (CS(off), CD(off))	28pF, 45pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-93dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
