Name: TMUX6209RUMR
Brand: Texas Instruments
SKU: TMUX6209RUMR
Price: 3.75 USD
Availability: InStock

REF: TMUX6209RUMR Texas Instruments

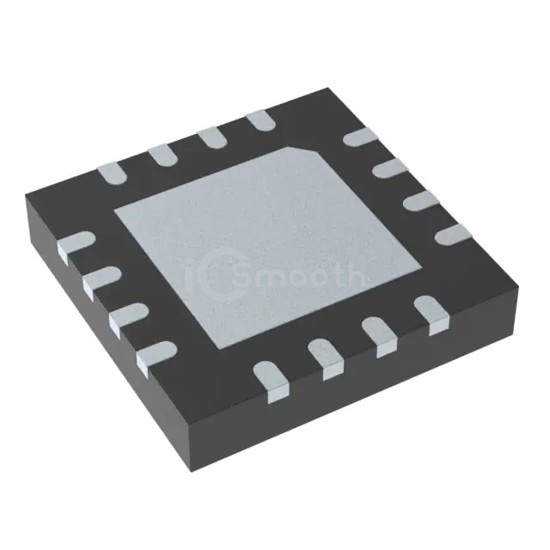

TMUX6209RUMR

IC MULTIPLEXER

TMUX6209RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.

Request a Quote

In Stock: 5,968

Specifications

18 parameters

Product Status	Active
Switch Circuit	4PST
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	6.2Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm
Voltage - Supply, Single (V+)	4.5V ~ 36V, ±4.5V ~ 18V
Voltage - Supply, Dual (V±)	4.5V ~ 36V, ±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)	200ns, 290ns

-3db Bandwidth	50MHz
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	15pF, 68pF
Current - Leakage (IS(off)) (Max)	400pA
Crosstalk	-65dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
