Name: TMUX6119DCNR
Brand: Texas Instruments
SKU: TMUX6119DCNR
Price: 4.68 USD
Availability: InStock

REF: TMUX6119DCNR Texas Instruments

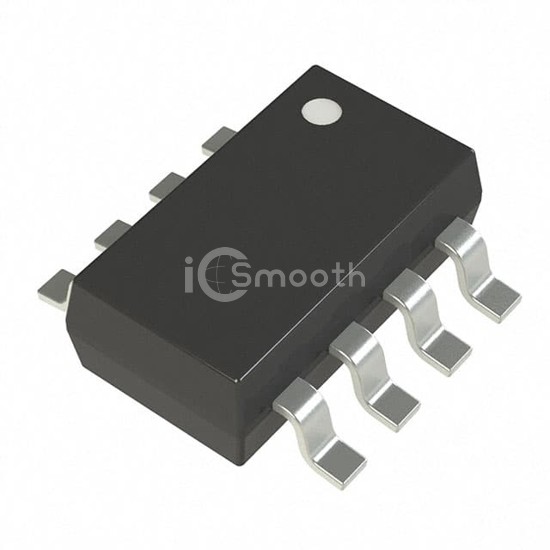

TMUX6119DCNR

IC SWITCH SPDT SINGLE SOT23-8

TMUX6119DCNR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT SINGLE SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-23-8, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,563

Tiered Pricing USD

1+ $4.6800 —

10+ $3.5610 -24%

25+ $3.2800 -30%

100+ $2.9713 -37%

250+ $2.9131 -38% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	165Ohm
Channel-to-Channel Matching (ΔRon)	2.4mOhm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±5V ~ 16.5V
Switch Time (Ton, Toff) (Max)	86ns, 64ns

-3db Bandwidth	700MHz
Charge Injection	-0.19pC
Channel Capacitance (CS(off), CD(off))	1.9pF, 4.3pF
Current - Leakage (IS(off)) (Max)	20pA
Crosstalk	-93dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
