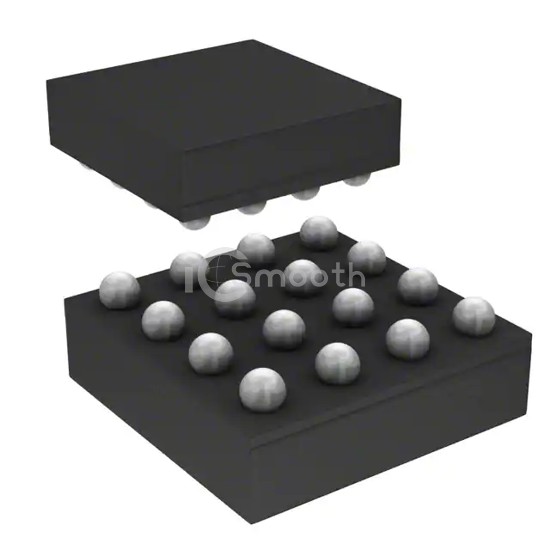

Name: TMUX1575YCJR
Brand: Texas Instruments
SKU: TMUX1575YCJR
Price: 0.90 USD
Availability: InStock

REF: TMUX1575YCJR Texas Instruments

TMUX1575YCJR

LOW-CAPACITANCE, 2:1 (SPDT) 4-CH

TMUX1575YCJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. LOW-CAPACITANCE, 2:1 (SPDT) 4-CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-BGA, WLCSP, number of circuits 4.

Request a Quote

In Stock: 35,955

Tiered Pricing USD

1+ $0.9000 —

10+ $0.6450 -28%

25+ $0.5812 -35%

100+ $0.5111 -43%

250+ $0.4776 -47%

500+ $0.4574 -49%

1,000+ $0.4559 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.08V ~ 3.6V
Voltage - Supply, Dual (V±)	1.08V ~ 3.6V
Switch Time (Ton, Toff) (Max)	130ns, 60ns

-3db Bandwidth	-
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	3.5pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-BGA, WLCSP
Supplier Device Package	16-WLCSP (1.34x1.34)
