Name: TMUX1574DYYR
Brand: Texas Instruments
SKU: TMUX1574DYYR
Price: 0.68 USD
Availability: InStock

REF: TMUX1574DYYR Texas Instruments

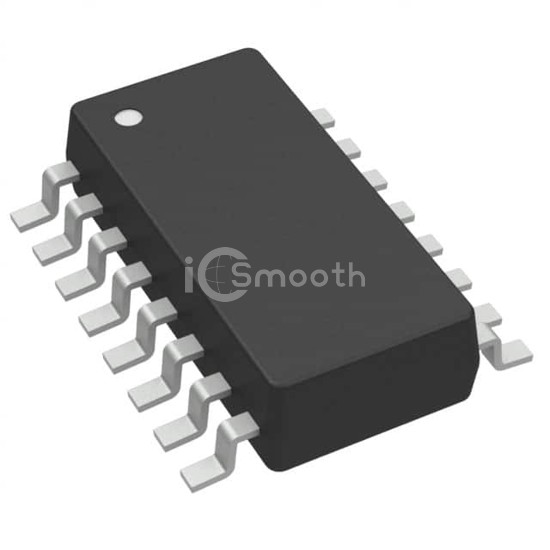

TMUX1574DYYR

IC SWITCH QUAD SPDT 16SOT-23

TMUX1574DYYR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD SPDT 16SOT-23. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-23-16 Thin, SOT-23 Variant, number of circuits 4.

Datasheet Request a Quote

In Stock: 6,650

Tiered Pricing USD

1+ $0.6800 —

10+ $0.4810 -29%

25+ $0.4320 -36%

100+ $0.3776 -44%

250+ $0.3517 -48%

500+ $0.3361 -51%

1,000+ $0.3305 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	4.5Ohm
Channel-to-Channel Matching (ΔRon)	70mOhm
Voltage - Supply, Single (V+)	1.5V ~ 5.5V
Voltage - Supply, Dual (V±)	1.5V ~ 5.5V
Switch Time (Ton, Toff) (Max)	35µs, 95ns

-3db Bandwidth	2GHz
Charge Injection	3.5pC
Channel Capacitance (CS(off), CD(off))	3.5pF, 3.5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-16 Thin, SOT-23 Variant
Supplier Device Package	16-SOT-23-THIN
