Name: TMUX1511RSVR
Brand: Texas Instruments
SKU: TMUX1511RSVR
Price: 0.66 USD
Availability: InStock

REF: TMUX1511RSVR Texas Instruments

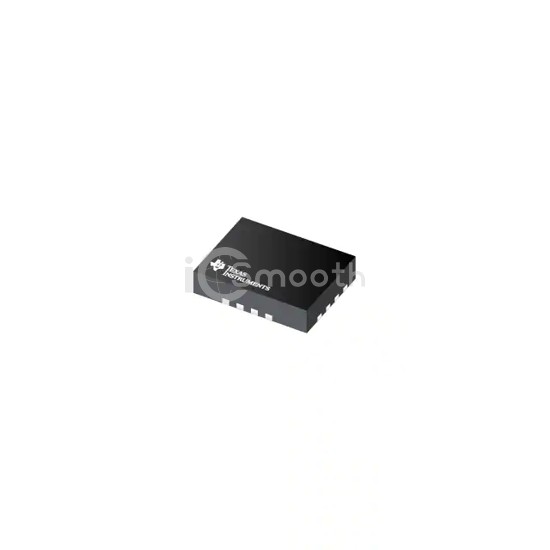

TMUX1511RSVR

IC SWITCH SPST QUAD 16UQFN

TMUX1511RSVR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPST QUAD 16UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 4.

Datasheet Request a Quote

In Stock: 4,349

Tiered Pricing USD

1+ $0.6600 —

10+ $0.4710 -29%

25+ $0.4228 -36%

100+ $0.3694 -44%

250+ $0.3440 -48%

500+ $0.3287 -50%

1,000+ $0.3228 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	4.5Ohm
Channel-to-Channel Matching (ΔRon)	70mOhm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	60µs, 4µs

-3db Bandwidth	3GHz
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	2.5pF, 2.5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-UQFN (2.6x1.8)
