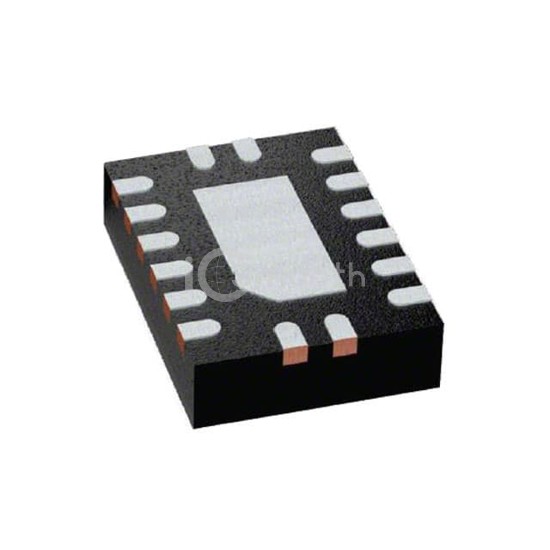

Name: TMUX1308BQBR
Brand: Texas Instruments
SKU: TMUX1308BQBR
Price: 0.57 USD
Availability: InStock

REF: TMUX1308BQBR Texas Instruments

TMUX1308BQBR

5-V, 8:1, 1-CHANNEL GENERAL-PURP

TMUX1308BQBR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 5-V, 8:1, 1-CHANNEL GENERAL-PURP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 1.

Request a Quote

In Stock: 2,389

Tiered Pricing USD

1+ $0.5700 —

10+ $0.4020 -29%

25+ $0.3596 -37%

100+ $0.3133 -45%

250+ $0.2912 -49%

500+ $0.2779 -51%

1,000+ $0.2669 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	195Ohm
Channel-to-Channel Matching (ΔRon)	7Ohm
Voltage - Supply, Single (V+)	1.62V ~ 5.5V
Voltage - Supply, Dual (V±)	1.62V ~ 5.5V
Switch Time (Ton, Toff) (Max)	32ns, 40ns

-3db Bandwidth	500MHz
Charge Injection	-6.5pC
Channel Capacitance (CS(off), CD(off))	2pF, 7pF
Current - Leakage (IS(off)) (Max)	1nA (Typ)
Crosstalk	-90dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Supplier Device Package	16-WQFN (2.5x3.5)
