Name: TMUX1209RSVR
Brand: Texas Instruments
SKU: TMUX1209RSVR
Price: 0.68 USD
Availability: InStock

REF: TMUX1209RSVR Texas Instruments

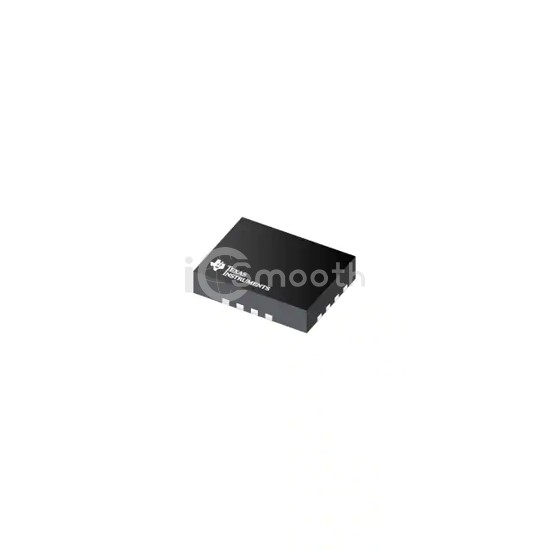

TMUX1209RSVR

IC SWITCH DUAL 16UQFN

TMUX1209RSVR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL 16UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,151

Tiered Pricing USD

1+ $0.6800 —

10+ $0.4810 -29%

25+ $0.4320 -36%

100+ $0.3776 -44%

250+ $0.3517 -48%

500+ $0.3361 -51%

1,000+ $0.3305 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	5Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	14ns, 5ns (Typ)

-3db Bandwidth	125MHz
Charge Injection	9pC
Channel Capacitance (CS(off), CD(off))	13pF, 38pF
Current - Leakage (IS(off)) (Max)	75nA (Typ)
Crosstalk	-62dB ~ -42dB @ 1MHz ~ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-UQFN (2.6x1.8)
