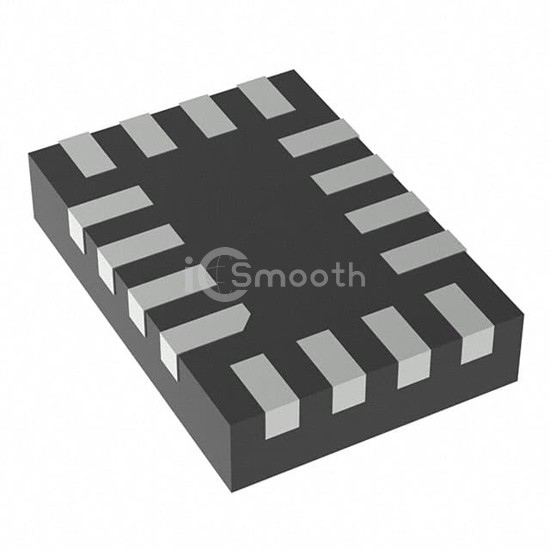

Name: TMUX1208QRSVRQ1
Brand: Texas Instruments
SKU: TMUX1208QRSVRQ1
Price: 0.97 USD
Availability: InStock

REF: TMUX1208QRSVRQ1 Texas Instruments

TMUX1208QRSVRQ1

Texas Instruments

AUTOMOTIVE, 5-V BIDIRECTIONAL 8:

TMUX1208QRSVRQ1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. AUTOMOTIVE, 5-V BIDIRECTIONAL 8:. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 1.

Request a Quote

In Stock: 7,046

Tiered Pricing USD

1+ $0.9700 —

10+ $0.6960 -28%

25+ $0.6280 -35%

100+ $0.5529 -43%

250+ $0.5171 -47%

500+ $0.4956 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	5Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.08V ~ 5.5V
Voltage - Supply, Dual (V±)	1.08V ~ 5.5V
Switch Time (Ton, Toff) (Max)	14ns (Typ), 11ns

-3db Bandwidth	65MHz
Charge Injection	-8pC
Channel Capacitance (CS(off), CD(off))	13pF, 76pF
Current - Leakage (IS(off)) (Max)	75nA
Crosstalk	-62dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-UQFN (2.6x1.8)
