Name: TMUX1204DQAR
Brand: Texas Instruments
SKU: TMUX1204DQAR
Price: 0.72 USD
Availability: InStock

REF: TMUX1204DQAR Texas Instruments

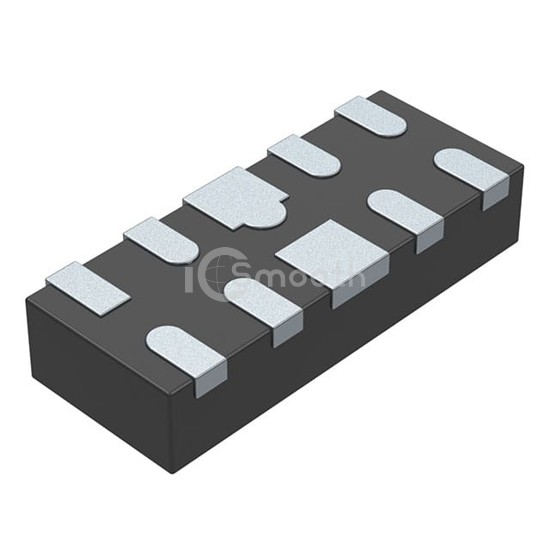

TMUX1204DQAR

IC SWITCH

TMUX1204DQAR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH. Key specifications: operating temperature -40°C ~ 125°C (TA), package / case 10-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 9,075

Tiered Pricing USD

1+ $0.7200 —

10+ $0.5100 -29%

25+ $0.4576 -36%

100+ $0.4006 -44%

250+ $0.3734 -48%

500+ $0.3569 -50%

1,000+ $0.3519 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	5Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.08V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	14ns, 5ns (Typ)

-3db Bandwidth	125MHz
Charge Injection	9pC
Channel Capacitance (CS(off), CD(off))	13pF, 38pF
Current - Leakage (IS(off)) (Max)	75nA (Typ)
Crosstalk	-42dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	-
Package / Case	10-UFDFN
Supplier Device Package	10-USON (2.5x1)
