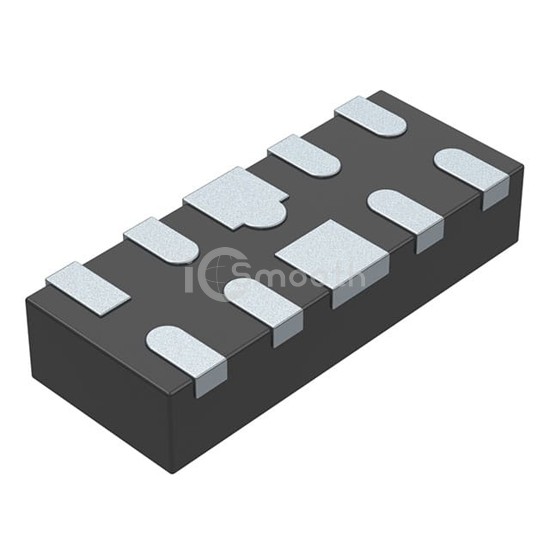

Name: TMUX1136DQAR
Brand: Texas Instruments
SKU: TMUX1136DQAR
Price: 2.93 USD
Availability: InStock

REF: TMUX1136DQAR Texas Instruments

TMUX1136DQAR

IC SWITCH

TMUX1136DQAR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH. Key specifications: operating temperature -40°C ~ 125°C (TA), package / case 10-UFDFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,897

Tiered Pricing USD

1+ $2.9300 —

10+ $2.1890 -25%

25+ $2.0048 -32%

100+ $1.8016 -39%

250+ $1.7243 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	4Ohm
Channel-to-Channel Matching (ΔRon)	130mOhm
Voltage - Supply, Single (V+)	1.08V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	220MHz
Charge Injection	-6pC
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	80pA
Crosstalk	-80dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	-
Package / Case	10-UFDFN
Supplier Device Package	10-USON (2.5x1)
