Name: TMUX1112RSVR
Brand: Texas Instruments
SKU: TMUX1112RSVR
Price: 3.11 USD
Availability: InStock

REF: TMUX1112RSVR Texas Instruments

TMUX1112RSVR

IC SWITCH

TMUX1112RSVR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH. Key specifications: operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 4.

Datasheet Request a Quote

In Stock: 8,949

Tiered Pricing USD

1+ $3.1100 —

10+ $2.3310 -25%

25+ $2.1360 -31%

100+ $1.9217 -38%

250+ $1.8452 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	4Ohm
Channel-to-Channel Matching (ΔRon)	130mOhm
Voltage - Supply, Single (V+)	1.08V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	300MHz
Charge Injection	-1.5pC
Channel Capacitance (CS(off), CD(off))	7pF, 10pF
Current - Leakage (IS(off)) (Max)	80pA
Crosstalk	-90dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	-

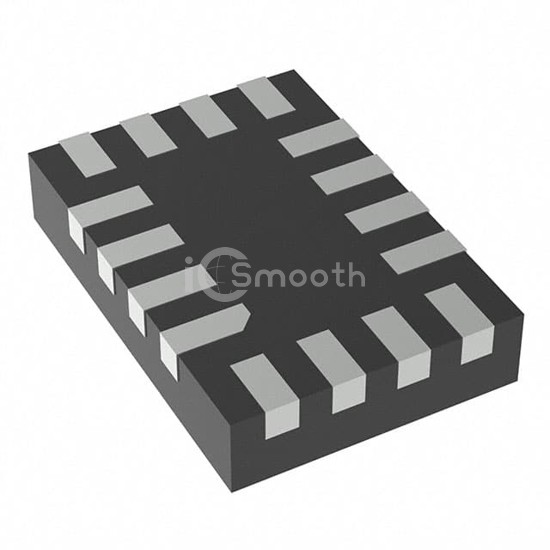

Package / Case	16-UFQFN
Supplier Device Package	16-UQFN (2.6x1.8)
