Name: TMUX1109RSVR
Brand: Texas Instruments
SKU: TMUX1109RSVR
Price: 3.77 USD
Availability: InStock

REF: TMUX1109RSVR Texas Instruments

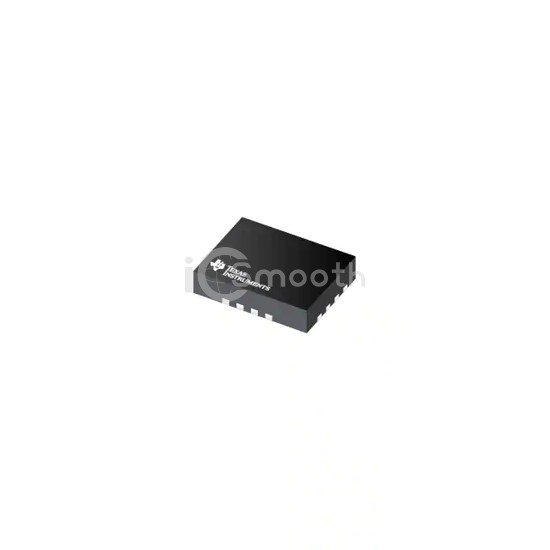

TMUX1109RSVR

IC SWITCH DUAL 16UQFN

TMUX1109RSVR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL 16UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,729

Tiered Pricing USD

1+ $3.7700 —

10+ $2.8450 -25%

25+ $2.6132 -31%

100+ $2.3585 -37%

250+ $2.2874 -39% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	4Ohm
Channel-to-Channel Matching (ΔRon)	180mOhm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±2.75V
Switch Time (Ton, Toff) (Max)	12ns, 6ns (Typ)

-3db Bandwidth	135MHz
Charge Injection	-1pC
Channel Capacitance (CS(off), CD(off))	7.5pF, 32pF
Current - Leakage (IS(off)) (Max)	80pA
Crosstalk	-90dB ~ -80dB @ 1MHz ~ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-UQFN (2.6x1.8)
