Name: SN74S20N
Brand: Texas Instruments
SKU: SN74S20N
Price: 2.59 USD
Availability: InStock

REF: SN74S20N Texas Instruments

SN74S20N

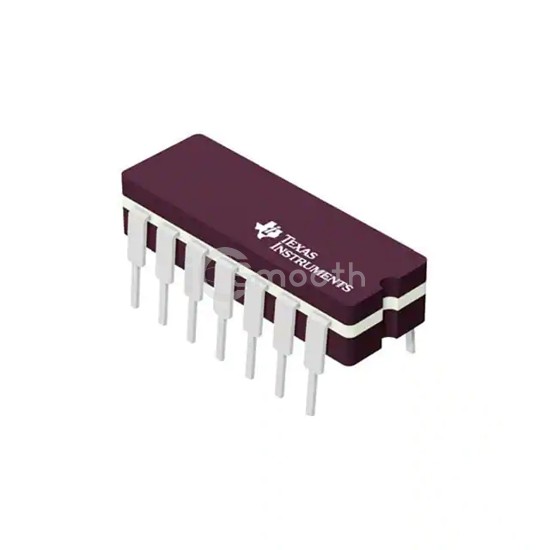

IC GATE NAND 2CH 4-INP 14DIP

SN74S20N is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 4-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,459

Tiered Pricing USD

1+ $2.5900 —

10+ $1.9280 -26%

25+ $1.7624 -32%

100+ $1.5803 -39%

250+ $1.4935 -42%

500+ $1.4412 -44%

1,000+ $1.3981 -46%

2,500+ $1.3527 -48%

5,000+ $1.3253 -49% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	2
Number of Inputs	4
Features	-
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	8 mA
Current - Output High, Low	1mA, 20mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	5ns @ 5V, 50pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Package / Case	14-DIP (0.300", 7.62mm)
