SN74F20NSR

In Stock: 4,241

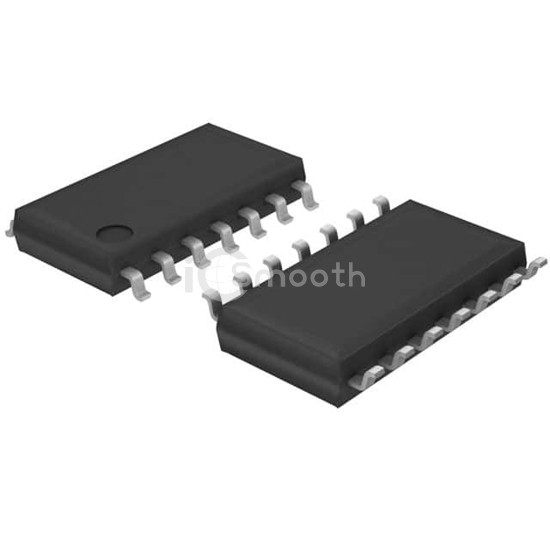

SN74F20NSR - Texas Instruments - Logic - Gates and Inverters
REF: SN74F20NSR Texas Instruments
SN74F20NSR

Texas Instruments

IC GATE NAND 2CH 4-INP 14SOP

SN74F20NSR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 4-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 4,241

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs4
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)-
Current - Output High, Low1mA, 20mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL6ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SO
Package / Case14-SOIC (0.209", 5.30mm Width)
