SN74S09NSR

In Stock: 6,827

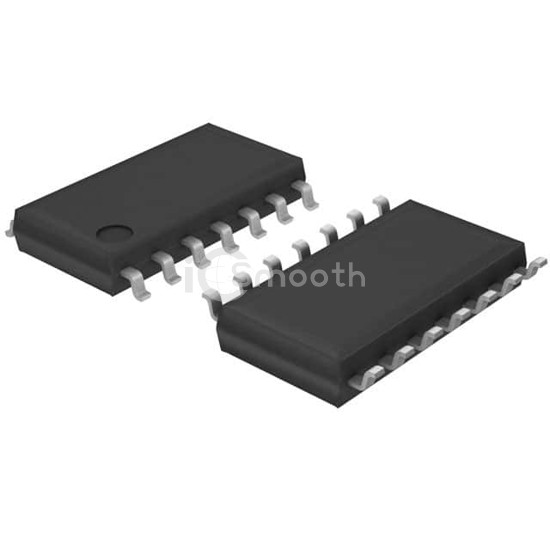

SN74S09NSR - Texas Instruments - Logic - Gates and Inverters
REF: SN74S09NSR Texas Instruments
SN74S09NSR

Texas Instruments

IC GATE AND OP COL 4CH 2IN 14SOP

SN74S09NSR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE AND OP COL 4CH 2IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 6,827

Specifications

15 parameters
Product StatusActive
Logic TypeAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)32 mA
Current - Output High, Low-, 20mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL9ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SO
Package / Case14-SOIC (0.209", 5.30mm Width)
