Name: SN74S09N
Brand: Texas Instruments
SKU: SN74S09N
Price: 6.50 USD
Availability: InStock

REF: SN74S09N Texas Instruments

SN74S09N

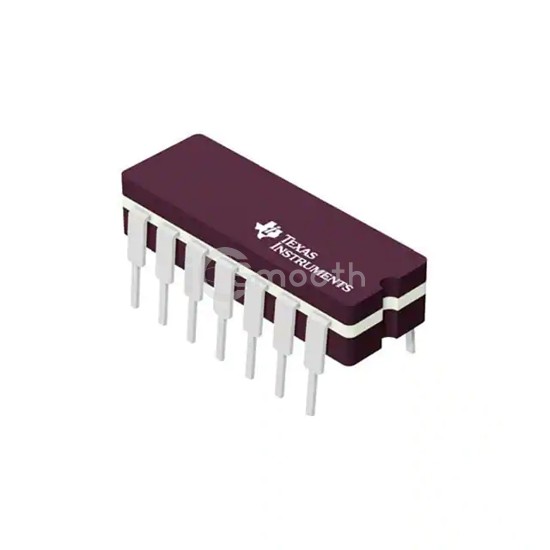

IC GATE AND OP COL 4CH 2IN 14DIP

SN74S09N is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE AND OP COL 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,168

Tiered Pricing USD

1+ $6.5000 —

10+ $4.9980 -23%

25+ $4.6228 -29%

100+ $4.2098 -35%

250+ $4.0129 -38%

500+ $3.8943 -40%

1,000+ $3.7966 -42%

2,500+ $3.6935 -43% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	4
Number of Inputs	2
Features	Open Collector
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	32 mA
Current - Output High, Low	-, 20mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	9ns @ 5V, 50pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Package / Case	14-DIP (0.300", 7.62mm)
