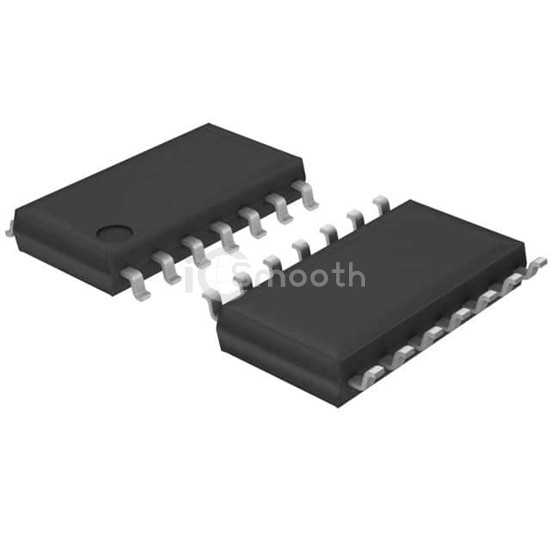

SN74S05NSR - Texas Instruments - Logic - Gates and Inverters
REF: SN74S05NSR Texas Instruments
SN74S05NSR

Texas Instruments

IC INV OPEN COL 6CH 1-IN 14SOP

SN74S05NSR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INV OPEN COL 6CH 1-IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,420

Tiered Pricing USD
1+ $2.3100 —
10+ $1.7110 -26%
25+ $1.5616 -32%
100+ $1.3976 -39%
250+ $1.3204 -43% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)-
Current - Output High, Low-, 20mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL7.5ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SO
Package / Case14-SOIC (0.209", 5.30mm Width)
