Name: SN74LVC2G04DRLRG4
Brand: Texas Instruments
SKU: SN74LVC2G04DRLRG4
Price: 0.46 USD
Availability: InStock

REF: SN74LVC2G04DRLRG4 Texas Instruments

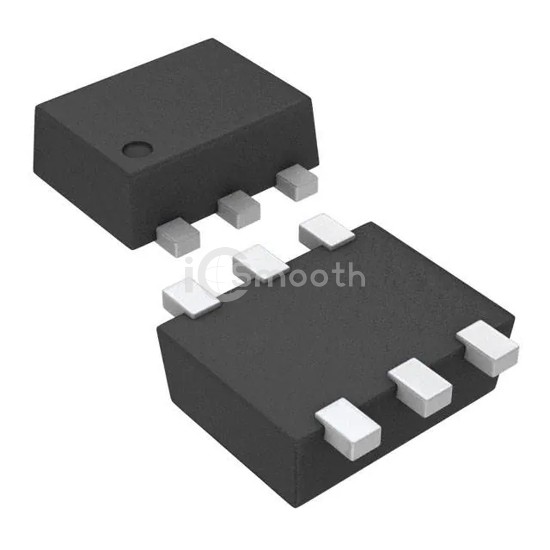

SN74LVC2G04DRLRG4

Texas Instruments

IC INVERTER 2CH 2-INP 6SOT

SN74LVC2G04DRLRG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERTER 2CH 2-INP 6SOT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 5,730

Tiered Pricing USD

4,000+ $0.4634 —

8,000+ $0.4533 -2%

12,000+ $0.4482 -3%

20,000+ $0.4426 -4% BEST

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
Logic Type	Inverter
Number of Circuits	2
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	3.2ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-5X3
Package / Case	SOT-563, SOT-666
