Name: SN74LVC1G38DPWR
Brand: Texas Instruments
SKU: SN74LVC1G38DPWR
Price: 0.31 USD
Availability: InStock

REF: SN74LVC1G38DPWR Texas Instruments

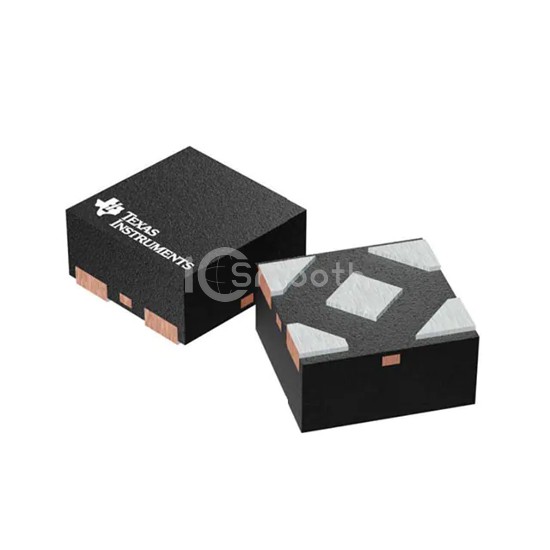

SN74LVC1G38DPWR

Texas Instruments

IC GATE NAND OD 1CH 2-INP 5X2SON

SN74LVC1G38DPWR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND OD 1CH 2-INP 5X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 5-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,271

Tiered Pricing USD

1+ $0.3100 —

10+ $0.2160 -30%

25+ $0.1916 -38%

100+ $0.1648 -47%

250+ $0.1520 -51%

500+ $0.1444 -53%

1,000+ $0.1380 -55% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	1
Number of Inputs	2
Features	Open Drain
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10 µA
Current - Output High, Low	-, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.2V ~ 2V
Max Propagation Delay @ V, Max CL	4.4ns @ 5V, 50pF
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Supplier Device Package	5-X2SON (0.8x0.8)
Package / Case	5-XFDFN Exposed Pad
