Name: SN74LVC1G3157DRY2
Brand: Texas Instruments
SKU: SN74LVC1G3157DRY2
Price: 0.25 USD
Availability: InStock

REF: SN74LVC1G3157DRY2 Texas Instruments

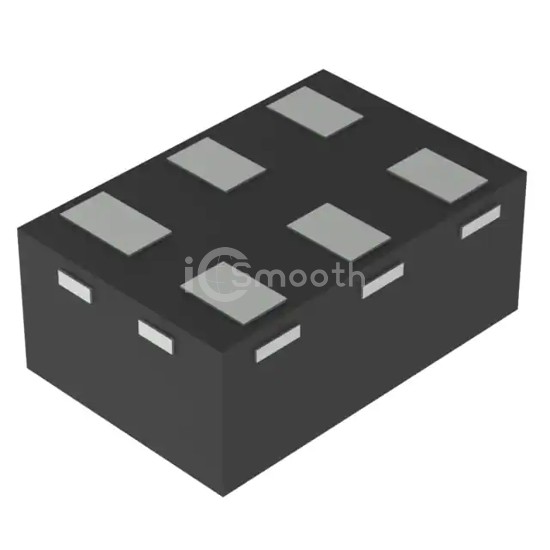

SN74LVC1G3157DRY2

Texas Instruments

IC SWITCH SPDT 6SON

SN74LVC1G3157DRY2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 2,027

Tiered Pricing USD

1+ $0.2500 —

10+ $0.1720 -31%

25+ $0.1520 -39%

100+ $0.1301 -48%

250+ $0.1196 -52%

500+ $0.1134 -55%

1,000+ $0.1082 -57%

2,500+ $0.1028 -59% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	15Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.7ns, 3.8ns

-3db Bandwidth	340MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	5.2pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-SON (1.45x1)
