Name: SN74LVC1G3157DRLR
Brand: Texas Instruments
SKU: SN74LVC1G3157DRLR
Price: 0.26 USD
Availability: InStock

REF: SN74LVC1G3157DRLR Texas Instruments

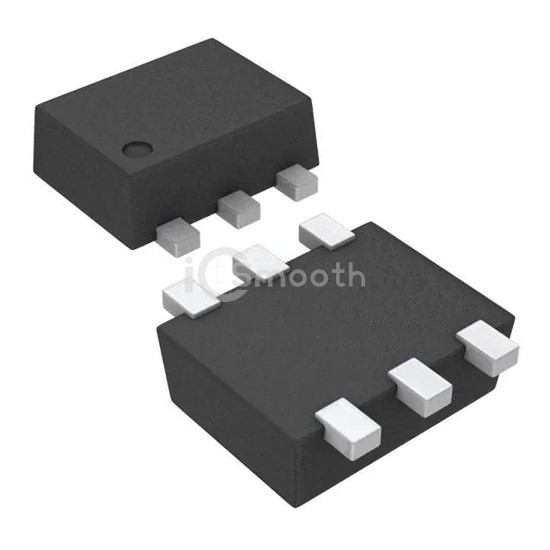

SN74LVC1G3157DRLR

Texas Instruments

IC SWITCH SPDT SINGLE 6SOT

SN74LVC1G3157DRLR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT SINGLE 6SOT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-563, SOT-666, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,277

Tiered Pricing USD

1+ $0.2600 —

10+ $0.1760 -32%

25+ $0.1560 -40%

100+ $0.1336 -49%

250+ $0.1229 -53%

500+ $0.1165 -55%

1,000+ $0.1112 -57% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	15Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.7ns, 3.8ns

-3db Bandwidth	340MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	5.2pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-5X3
