Name: SN74LVC1G14YZVR
Brand: Texas Instruments
SKU: SN74LVC1G14YZVR
Price: 0.37 USD
Availability: InStock

REF: SN74LVC1G14YZVR Texas Instruments

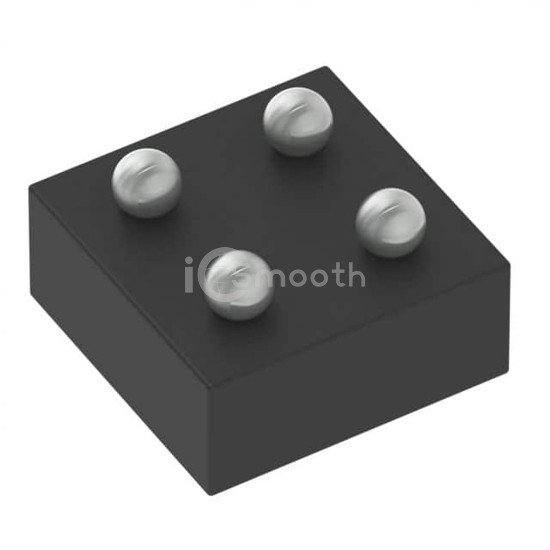

SN74LVC1G14YZVR

Texas Instruments

IC INVERT SCHMITT 1CH 1IN 4DSBGA

SN74LVC1G14YZVR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN 4DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 5,252

Tiered Pricing USD

1+ $0.3700 —

10+ $0.2570 -31%

25+ $0.2284 -38%

100+ $0.1974 -47%

250+ $0.1825 -51%

500+ $0.1735 -53%

1,000+ $0.1661 -55% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	Inverter
Number of Circuits	1
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.39V ~ 1.87V
Logic Level - High	1.16V ~ 3.33V
Max Propagation Delay @ V, Max CL	5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Supplier Device Package	4-DSBGA (0.88x0.88)
Package / Case	4-XFBGA, DSBGA
