Name: SN74LVC1G14YZTR
Brand: Texas Instruments
SKU: SN74LVC1G14YZTR
Price: 0.16 USD
Availability: InStock

REF: SN74LVC1G14YZTR Texas Instruments

SN74LVC1G14YZTR

Texas Instruments

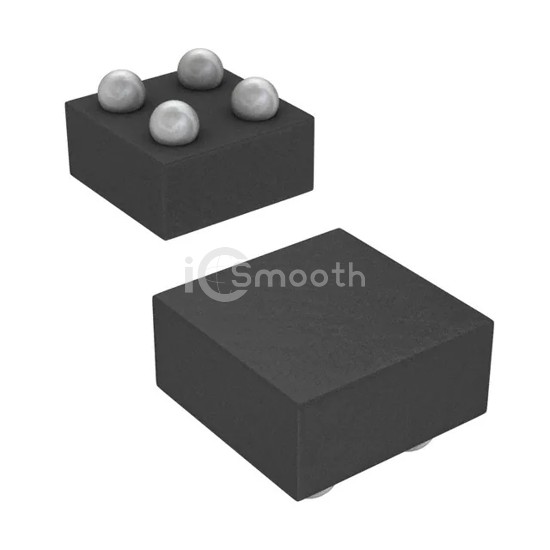

IC INVERT SCHMITT 1CH 1IN 4DSBGA

SN74LVC1G14YZTR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN 4DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 4-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 5,916

Tiered Pricing USD

3,000+ $0.1598 —

6,000+ $0.1553 -3%

9,000+ $0.1530 -4%

15,000+ $0.1505 -6%

21,000+ $0.1490 -7%

30,000+ $0.1476 -8% BEST

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
Logic Type	Inverter
Number of Circuits	1
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.39V ~ 1.87V
Logic Level - High	1.16V ~ 3.33V
Max Propagation Delay @ V, Max CL	5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Supplier Device Package	4-DSBGA (0.9x0.9)
Package / Case	4-UFBGA, DSBGA
