SN74LVC1G14DRYR

In Stock: 3,521

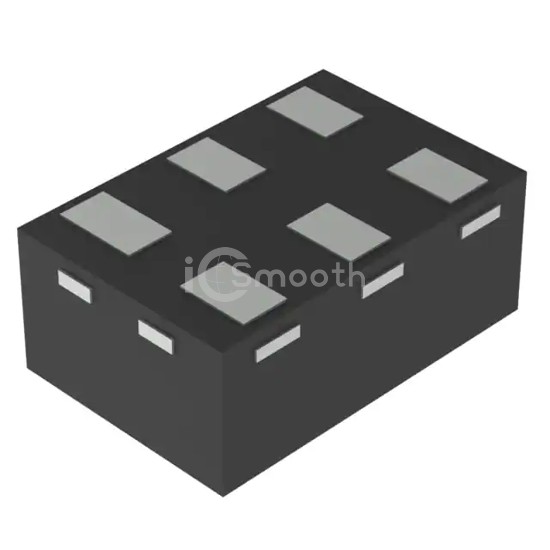

SN74LVC1G14DRYR - Texas Instruments - Logic - Gates and Inverters
REF: SN74LVC1G14DRYR Texas Instruments
SN74LVC1G14DRYR

Texas Instruments

IC INVERT SCHMITT 1CH 1-INP 6SON

SN74LVC1G14DRYR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1-INP 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 3,521

Tiered Pricing USD
1+ $0.3000 —
10+ $0.2050 -32%
25+ $0.1816 -39%
100+ $0.1562 -48%
250+ $0.1440 -52%
500+ $0.1366 -54%
1,000+ $0.1306 -56%
2,500+ $0.1285 -57% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits1
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.39V ~ 1.87V
Logic Level - High1.16V ~ 3.33V
Max Propagation Delay @ V, Max CL5ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-SON (1.45x1)
Package / Case6-UFDFN
