SN74LVC1G02DRYR

In Stock: 82,890

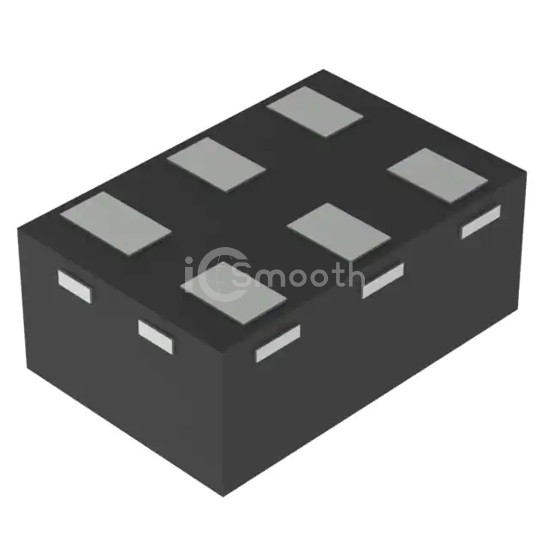

SN74LVC1G02DRYR - Texas Instruments - Logic - Gates and Inverters
REF: SN74LVC1G02DRYR Texas Instruments
SN74LVC1G02DRYR

Texas Instruments

IC GATE NOR 1CH 2-INP 6SON

SN74LVC1G02DRYR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 1CH 2-INP 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 82,890

Tiered Pricing USD
1+ $0.2900 —
10+ $0.1980 -32%
25+ $0.1756 -39%
100+ $0.1510 -48%
250+ $0.1391 -52%
500+ $0.1320 -54%
1,000+ $0.1261 -57%
2,500+ $0.1239 -57% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL4.5ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-SON (1.45x1)
Package / Case6-UFDFN
