Name: SN74LVC1G02DPWR
Brand: Texas Instruments
SKU: SN74LVC1G02DPWR
Price: 0.24 USD
Availability: InStock

REF: SN74LVC1G02DPWR Texas Instruments

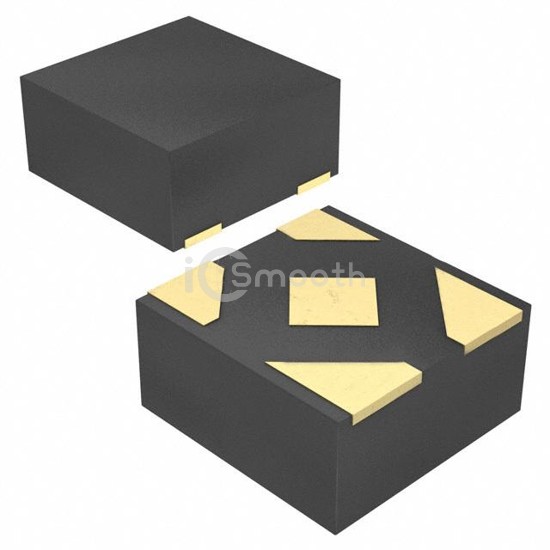

SN74LVC1G02DPWR

Texas Instruments

IC GATE NOR 1CH 2-INP 4XDFN

SN74LVC1G02DPWR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 1CH 2-INP 4XDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 175,888

Tiered Pricing USD

1+ $0.2400 —

10+ $0.1670 -30%

25+ $0.1480 -38%

100+ $0.1266 -47%

250+ $0.1164 -52%

500+ $0.1103 -54%

1,000+ $0.1052 -56% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NOR Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	4.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	4-XDFN (0.8x0.8)
Package / Case	4-XFDFN Exposed Pad
