SN74LS38DBR

In Stock: 8,912

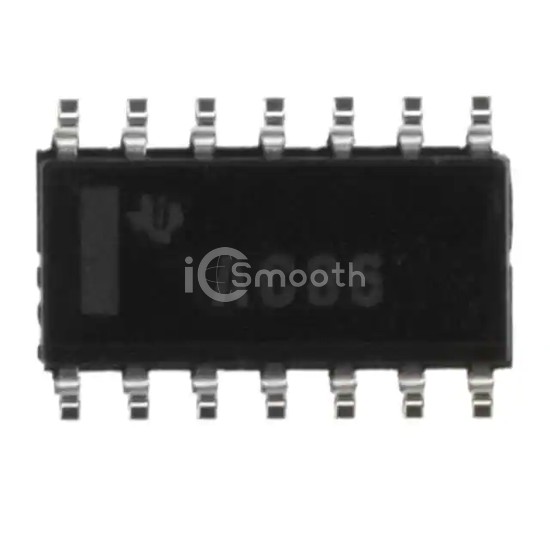

SN74LS38DBR - Texas Instruments - Logic - Gates and Inverters
REF: SN74LS38DBR Texas Instruments
SN74LS38DBR

Texas Instruments

IC GATE NAND OPEN 4CH 2IN 14SSOP

SN74LS38DBR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND OPEN 4CH 2IN 14SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 8,912

Tiered Pricing USD
2,000+ $0.8377 —
4,000+ $0.8181 -2%
6,000+ $0.8083 -4%
10,000+ $0.7974 -5% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)2 mA
Current - Output High, Low-, 24mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL32ns @ 5V, 45pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SSOP
Package / Case14-SSOP (0.209", 5.30mm Width)
