Name: SN74LS20N
Brand: Texas Instruments
SKU: SN74LS20N
Price: 1.14 USD
Availability: InStock

REF: SN74LS20N Texas Instruments

SN74LS20N

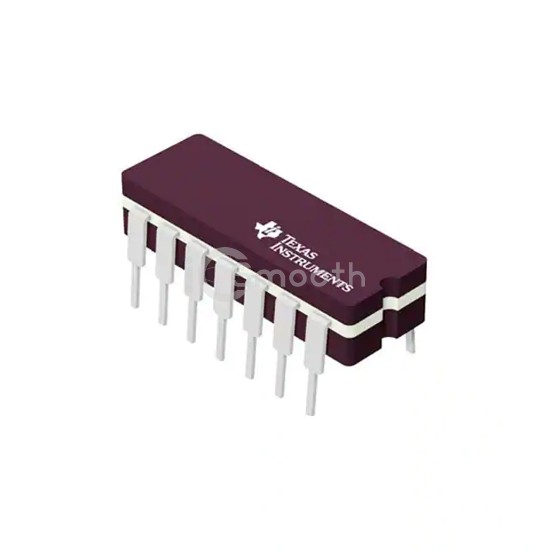

IC GATE NAND 2CH 4-INP 14DIP

SN74LS20N is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 4-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,405

Tiered Pricing USD

1+ $1.1400 —

10+ $0.8270 -27%

25+ $0.7476 -34%

100+ $0.6603 -42%

250+ $0.6187 -46%

500+ $0.5936 -48%

1,000+ $0.5730 -50%

2,500+ $0.5512 -52%

5,000+ $0.5380 -53% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	2
Number of Inputs	4
Features	-
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	800 µA
Current - Output High, Low	400µA, 8mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	15ns @ 5V, 15pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Package / Case	14-DIP (0.300", 7.62mm)
