SN74LS136NSR

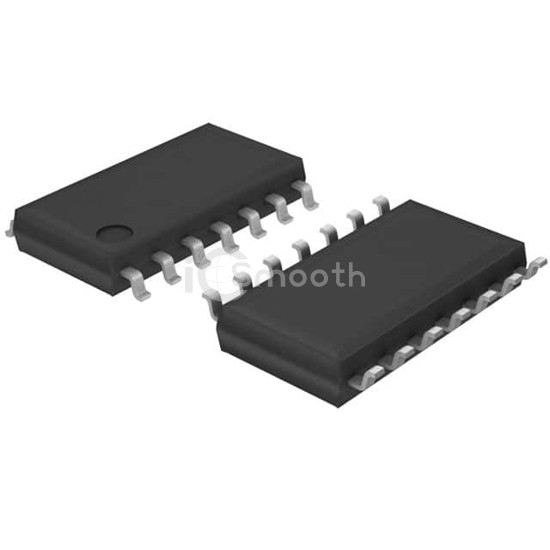

IC GATE XOR OP COL 4CH 2IN 14SOP

SN74LS136NSR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE XOR OP COL 4CH 2IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 47,495

Tiered Pricing USD

2,000+ $0.6070 —

4,000+ $0.5920 -2%

6,000+ $0.5845 -4%

10,000+ $0.5761 -5%

14,000+ $0.5713 -6% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	XOR (Exclusive OR)
Number of Circuits	4
Number of Inputs	2
Features	Open Collector
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	10 mA
Current - Output High, Low	-, 8mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	30ns @ 5V, 15pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Supplier Device Package	14-SO
Package / Case	14-SOIC (0.209", 5.30mm Width)
