SN74LS136NG4

In Stock: 1,571
SN74LS136NG4 - Texas Instruments - Logic - Gates and Inverters
REF: SN74LS136NG4 Texas Instruments
SN74LS136NG4

Texas Instruments

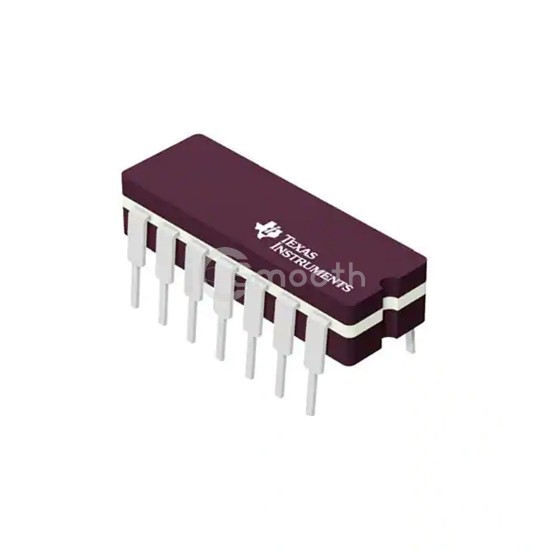

IC GATE XOR OP COL 4CH 2IN 14DIP

SN74LS136NG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE XOR OP COL 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,571

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
Logic TypeXOR (Exclusive OR)
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)-
Current - Output High, Low-, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL30ns @ 5V, 15pF
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Supplier Device Package14-PDIP
Package / Case14-DIP (0.300", 7.62mm)
