Name: SN74LS136N
Brand: Texas Instruments
SKU: SN74LS136N
Price: 1.28 USD
Availability: InStock

REF: SN74LS136N Texas Instruments

SN74LS136N

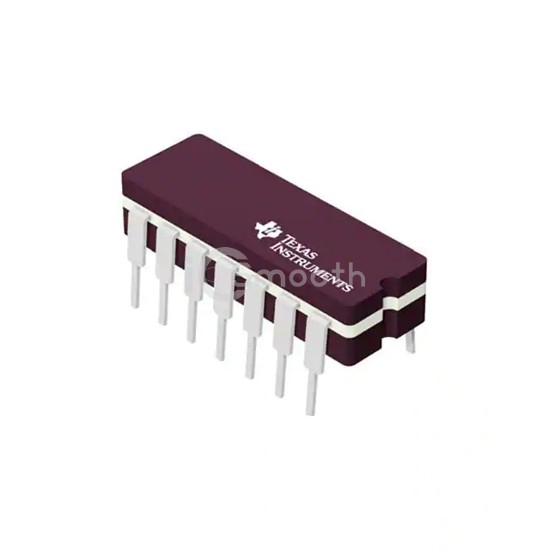

IC GATE XOR OP COL 4CH 2IN 14DIP

SN74LS136N is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE XOR OP COL 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,951

Tiered Pricing USD

1+ $1.2800 —

10+ $0.9290 -27%

25+ $0.8412 -34%

100+ $0.7445 -42%

250+ $0.6985 -45%

500+ $0.6707 -48%

1,000+ $0.6479 -49%

2,500+ $0.6238 -51%

5,000+ $0.6092 -52% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	XOR (Exclusive OR)
Number of Circuits	4
Number of Inputs	2
Features	Open Collector
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	10 mA
Current - Output High, Low	-, 8mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	30ns @ 5V, 15pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Package / Case	14-DIP (0.300", 7.62mm)
