Name: SN74LS09NSR
Brand: Texas Instruments
SKU: SN74LS09NSR
Price: 0.82 USD
Availability: InStock

REF: SN74LS09NSR Texas Instruments

SN74LS09NSR

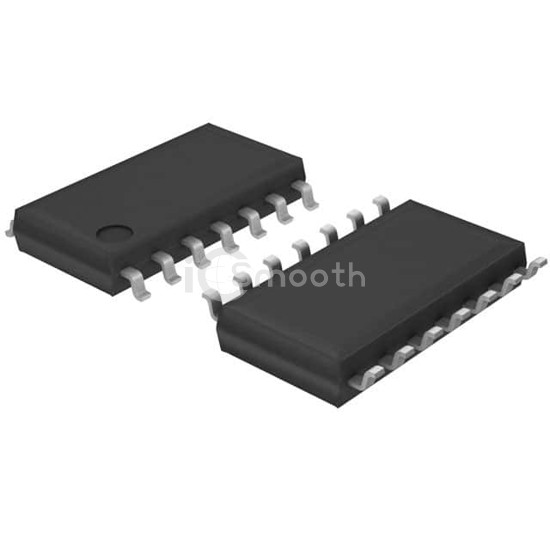

IC GATE AND OP COL 4CH 2IN 14SOP

SN74LS09NSR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE AND OP COL 4CH 2IN 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 4,000

Tiered Pricing USD

1+ $0.8200 —

10+ $0.5880 -28%

25+ $0.5288 -36%

100+ $0.4641 -43%

250+ $0.4333 -47%

500+ $0.4147 -49%

1,000+ $0.4116 -50% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	4
Number of Inputs	2
Features	Open Collector
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	-
Current - Output High, Low	-, 8mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	35ns @ 5V, 15pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Supplier Device Package	14-SO
Package / Case	14-SOIC (0.209", 5.30mm Width)
