Name: SN74LS09N
Brand: Texas Instruments
SKU: SN74LS09N
Price: 0.97 USD
Availability: InStock

REF: SN74LS09N Texas Instruments

SN74LS09N

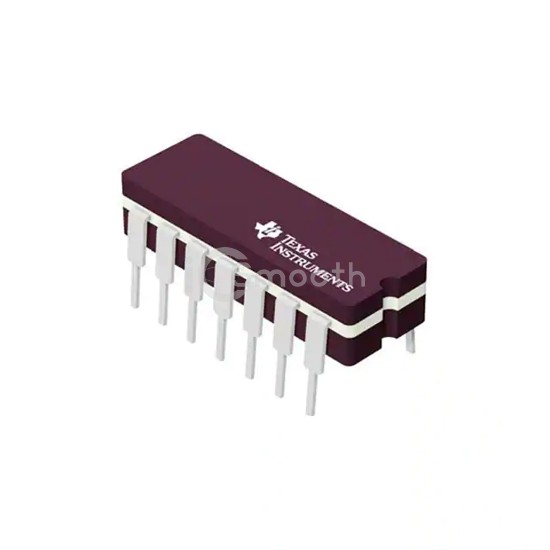

IC GATE AND OP COL 4CH 2IN 14DIP

SN74LS09N is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE AND OP COL 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 9,907

Tiered Pricing USD

1+ $0.9700 —

10+ $0.6940 -28%

25+ $0.6264 -35%

100+ $0.5514 -43%

250+ $0.5157 -47%

500+ $0.4942 -49%

1,000+ $0.4764 -51%

2,500+ $0.4577 -53%

5,000+ $0.4465 -54% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	4
Number of Inputs	2
Features	Open Collector
Voltage - Supply	4.75V ~ 5.25V
Current - Quiescent (Max)	-
Current - Output High, Low	-, 8mA

Logic Level - Low	0.8V
Logic Level - High	2V
Max Propagation Delay @ V, Max CL	35ns @ 5V, 15pF
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Package / Case	14-DIP (0.300", 7.62mm)
