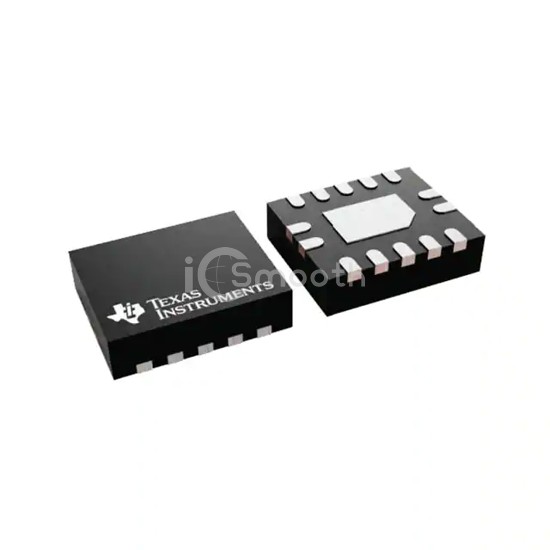

Name: SN74HCS86BQAR
Brand: Texas Instruments
SKU: SN74HCS86BQAR
Price: 0.51 USD
Availability: InStock

REF: SN74HCS86BQAR Texas Instruments

SN74HCS86BQAR

Texas Instruments

QUADRUPLE 2-INPUT XOR GATES WITH

SN74HCS86BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT XOR GATES WITH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,897

Tiered Pricing USD

1+ $0.5100 —

10+ $0.3600 -29%

25+ $0.3220 -37%

100+ $0.2800 -45%

250+ $0.2599 -49%

500+ $0.2478 -51%

1,000+ $0.2402 -53% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	XOR (Exclusive OR)
Number of Circuits	4
Number of Inputs	2
Features	Schmitt Trigger Input
Voltage - Supply	2V ~ 6V
Current - Quiescent (Max)	2 µA
Current - Output High, Low	7.8mA, 7.8mA

Logic Level - Low	1V ~ 3V
Logic Level - High	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL	12ns @ 6V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	14-WQFN (3x2.5)
Package / Case	14-QFN Exposed Pad
