SN74HCS14BQAR

In Stock: 9,450

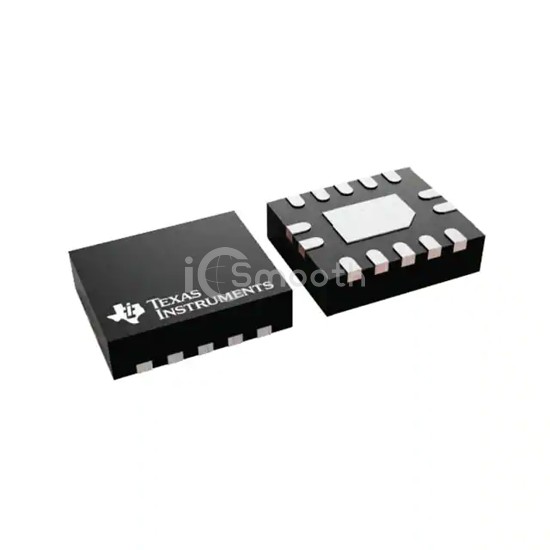

SN74HCS14BQAR - Texas Instruments - Logic - Gates and Inverters
REF: SN74HCS14BQAR Texas Instruments
SN74HCS14BQAR

Texas Instruments

HEX INVERTER WITH SCHMITT-TRIGGE

SN74HCS14BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. HEX INVERTER WITH SCHMITT-TRIGGE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,450

Tiered Pricing USD
1+ $0.4300 —
10+ $0.2970 -31%
25+ $0.2652 -38%
100+ $0.2296 -47%
250+ $0.2127 -51%
500+ $0.2025 -53%
1,000+ $0.1943 -55% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesSchmitt Trigger Input
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low7.8mA, 7.8mA
Logic Level - Low1V ~ 3V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL16ns @ 6V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-WQFN (3x2.5)
Package / Case14-QFN Exposed Pad
