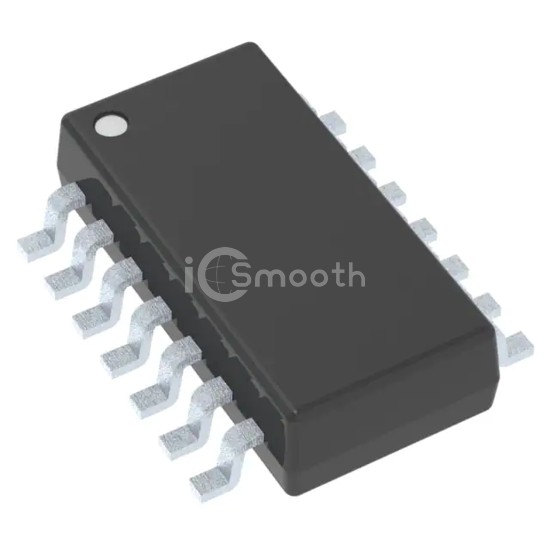

Name: SN74HCS08DYYR
Brand: Texas Instruments
SKU: SN74HCS08DYYR
Price: 0.29 USD
Availability: InStock

REF: SN74HCS08DYYR Texas Instruments

SN74HCS08DYYR

Texas Instruments

4-CH, 2-INPUT, 2-V TO 6-V LOW PO

SN74HCS08DYYR is a Logic - Gates and Inverters manufactured by Texas Instruments. 4-CH, 2-INPUT, 2-V TO 6-V LOW PO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.

Datasheet Request a Quote

In Stock: 3,811

Tiered Pricing USD

1+ $0.2900 —

10+ $0.1980 -32%

25+ $0.1756 -39%

100+ $0.1510 -48%

250+ $0.1391 -52%

500+ $0.1320 -54%

1,000+ $0.1261 -57% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	4
Number of Inputs	2
Features	Schmitt Trigger Input
Voltage - Supply	2V ~ 6V
Current - Quiescent (Max)	2 µA
Current - Output High, Low	7.8mA

Logic Level - Low	1V ~ 3V
Logic Level - High	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL	12ns @ 6V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	14-SOT-23-THIN
Package / Case	SOT-23-14 Thin, SOT-23 Variant
