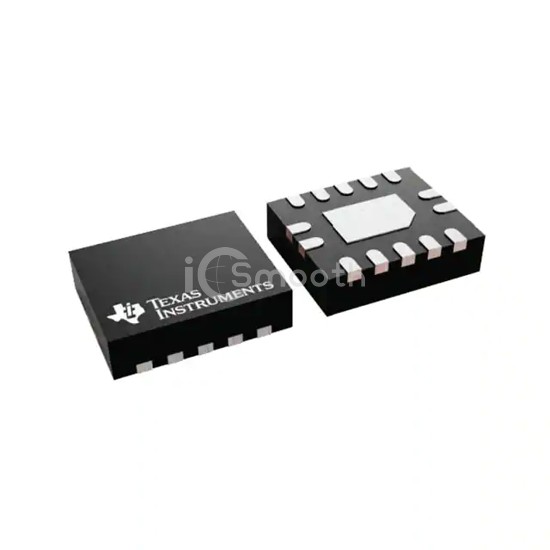

Name: SN74HCS08BQAR
Brand: Texas Instruments
SKU: SN74HCS08BQAR
Price: 0.55 USD
Availability: InStock

REF: SN74HCS08BQAR Texas Instruments

SN74HCS08BQAR

Texas Instruments

QUADRUPLE 2-INPUT POSITIVE-AND G

SN74HCS08BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT POSITIVE-AND G. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,607

Tiered Pricing USD

1+ $0.5500 —

10+ $0.3890 -29%

25+ $0.3484 -37%

100+ $0.3033 -45%

250+ $0.2818 -49%

500+ $0.2689 -51%

1,000+ $0.2616 -52% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	4
Number of Inputs	2
Features	Schmitt Trigger Input
Voltage - Supply	2V ~ 6V
Current - Quiescent (Max)	2 µA
Current - Output High, Low	7.8mA, 7.8mA

Logic Level - Low	1V ~ 3V
Logic Level - High	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL	12ns @ 6V, 50pF
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	14-WQFN (3x2.5)
Package / Case	14-QFN Exposed Pad
