SN74HCS02BQAR

In Stock: 4,163

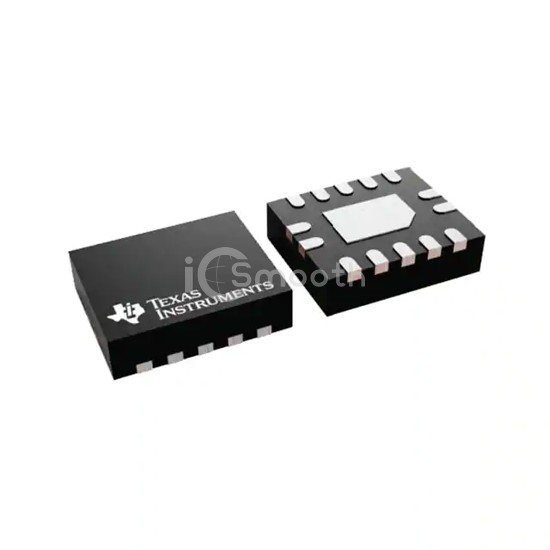

SN74HCS02BQAR - Texas Instruments - Logic - Gates and Inverters
REF: SN74HCS02BQAR Texas Instruments
SN74HCS02BQAR

Texas Instruments

QUADRUPLE 2-INPUT NOR GATES WITH

SN74HCS02BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT NOR GATES WITH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,163

Tiered Pricing USD
1+ $0.4200 —
10+ $0.2910 -31%
25+ $0.2592 -38%
100+ $0.2245 -47%
250+ $0.2079 -50%
500+ $0.1979 -53%
1,000+ $0.1897 -55% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits4
Number of Inputs2
FeaturesSchmitt Trigger Input
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low7.8mA, 7.8mA
Logic Level - Low1V ~ 3V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL12ns @ 6V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-WQFN (3x2.5)
Package / Case14-QFN Exposed Pad
