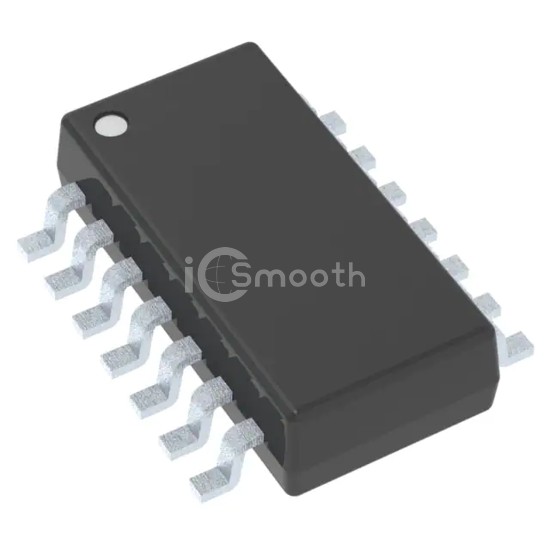

Name: SN74HCS00QDYYRQ1
Brand: Texas Instruments
SKU: SN74HCS00QDYYRQ1
Price: 0.43 USD
Availability: InStock

REF: SN74HCS00QDYYRQ1 Texas Instruments

SN74HCS00QDYYRQ1

Texas Instruments

AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO

SN74HCS00QDYYRQ1 is a Logic - Gates and Inverters manufactured by Texas Instruments. AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.

Datasheet Request a Quote

In Stock: 2,836

Tiered Pricing USD

1+ $0.4300 —

10+ $0.2970 -31%

25+ $0.2652 -38%

100+ $0.2296 -47%

250+ $0.2127 -51%

500+ $0.2025 -53%

1,000+ $0.1943 -55% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	4
Number of Inputs	2
Features	Schmitt Trigger Input
Voltage - Supply	2V ~ 6V
Current - Quiescent (Max)	2 µA
Current - Output High, Low	7.8mA

Logic Level - Low	1V ~ 3V
Logic Level - High	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL	12ns @ 6V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	14-SOT-23-THIN
Package / Case	SOT-23-14 Thin, SOT-23 Variant
