SN74HC7002NG4 - Texas Instruments - Logic - Gates and Inverters
REF: SN74HC7002NG4 Texas Instruments
SN74HC7002NG4

Texas Instruments

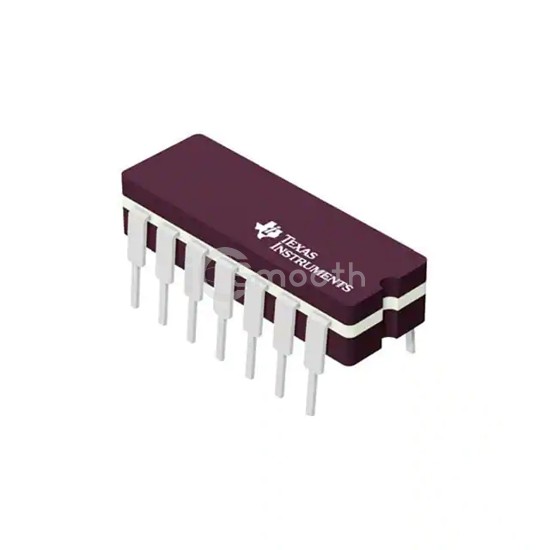

IC GATE NOR SCHMIT 4CH 2IN 14DIP

SN74HC7002NG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR SCHMIT 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,131

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
Logic TypeNOR Gate
Number of Circuits4
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low5.2mA, 5.2mA
Logic Level - Low0.3V ~ 1.2V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL22ns @ 6V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Supplier Device Package14-PDIP
Package / Case14-DIP (0.300", 7.62mm)
