SN74HC05NSR

In Stock: 8,595
SN74HC05NSR - Texas Instruments - Logic - Gates and Inverters
REF: SN74HC05NSR Texas Instruments
SN74HC05NSR

Texas Instruments

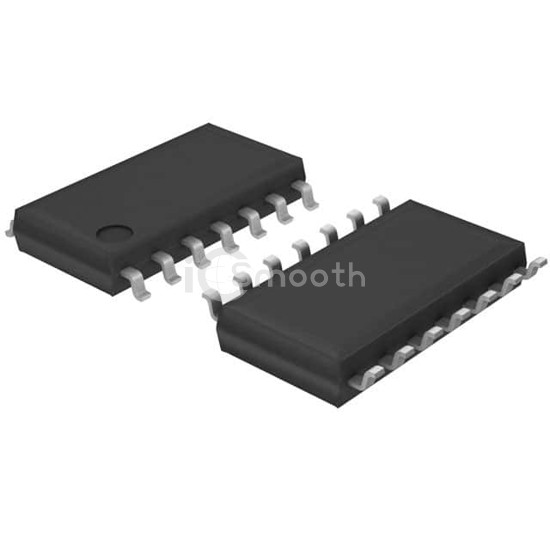

IC INVERTER OD 6CH 1-INP 14SOP

SN74HC05NSR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERTER OD 6CH 1-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 8,595

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesOpen Drain
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low-, 5.2mA
Logic Level - Low0.5V ~ 1.8V
Logic Level - High1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL20ns @ 6V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SO
Package / Case14-SOIC (0.209", 5.30mm Width)
