SN74AUP2G00DQER

In Stock: 5,929

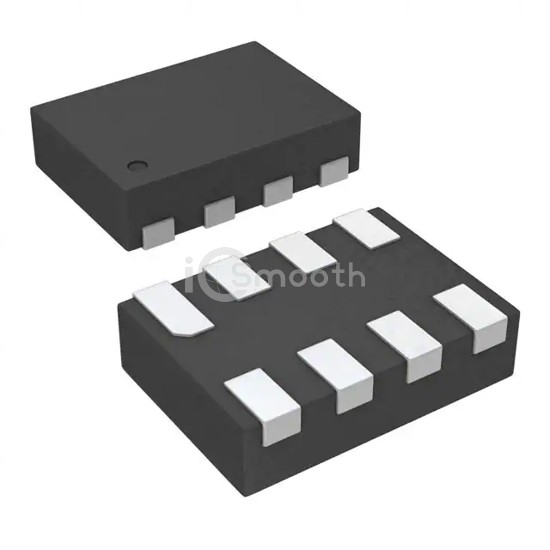

SN74AUP2G00DQER - Texas Instruments - Logic - Gates and Inverters
REF: SN74AUP2G00DQER Texas Instruments
SN74AUP2G00DQER

Texas Instruments

IC GATE NAND 2CH 2-INP 8X2SON

SN74AUP2G00DQER is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 2-INP 8X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.8V ~ 3.6V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 5,929

Tiered Pricing USD
1+ $0.6600 —
10+ $0.4710 -29%
25+ $0.4228 -36%
100+ $0.3694 -44%
250+ $0.3440 -48%
500+ $0.3287 -50%
1,000+ $0.3228 -51% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply0.8V ~ 3.6V
Current - Quiescent (Max)500 nA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.7V ~ 0.9V
Logic Level - High1.6V ~ 2V
Max Propagation Delay @ V, Max CL6.7ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package8-X2SON (1.4x1)
Package / Case8-XFDFN
