SN74AUP1G00DRY2

In Stock: 2,278

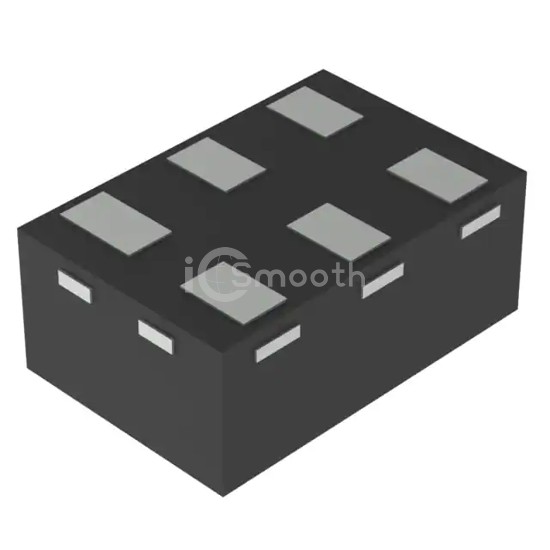

SN74AUP1G00DRY2 - Texas Instruments - Logic - Gates and Inverters
REF: SN74AUP1G00DRY2 Texas Instruments
SN74AUP1G00DRY2

Texas Instruments

IC GATE NAND 1CH 2-INP 6SON

SN74AUP1G00DRY2 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 1CH 2-INP 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.8V ~ 3.6V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 2,278

Tiered Pricing USD
1+ $0.4500 —
10+ $0.3160 -30%
25+ $0.2824 -37%
100+ $0.2448 -46%
250+ $0.2269 -50%
500+ $0.2161 -52%
1,000+ $0.2081 -54% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.8V ~ 3.6V
Current - Quiescent (Max)500 nA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.7V ~ 0.9V
Logic Level - High1.6V ~ 2V
Max Propagation Delay @ V, Max CL6.5ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package6-SON (1.45x1)
Package / Case6-UFDFN
